About the Printable Trumpet v2

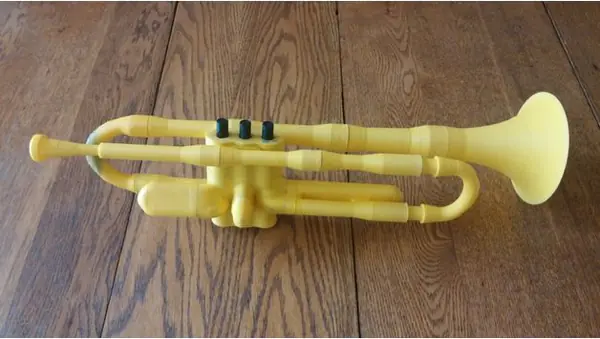

Updated to Version 2 (2015). We used to list the designer's original Printable Trumpet, one of the best-known printed trumpets, loosely modelled on a Bach Stradivarius. He found its sound and playability 'honestly pretty bad' and redesigned it. This is that second version; none of the original parts fit it, apart from perhaps the mouthpiece.
For Version 2 he widened the tubes, especially in the middle, and made them round instead of oval. It should still print without supports, and it's more printer-friendly: most pieces are 5 inches or less, the tallest about 5.6 inches. With suitable valve springs you don't need rubber bands to hold the valves down, though you may still want bands or braces to stop the tubes wobbling. He finished it in July 2015 and says it still doesn't sound great.
The video is a maker building and playing Version 2. The original is still on Thingiverse, linked below, for its history.
What you'll need
Printed parts
- Trumpet parts (Version 2)
Bought parts
- Valve springs
- Valve oil ? (catalogue note)
- A trumpet mouthpiece
- Optional: rubber bands to steady the tubes
Tools
- Files and sandpaper for post-processing
Video
Play video: How to make (and play) a 3D-printed trumpet (builds Version 2) (loads YouTube)
Nothing loads from YouTube until you press play. Video thumbnails are © their creators.
The designer trying to play the original Printable Trumpet (YouTube) the earlier version
Photos
Thingiverse doesn't let us fetch its gallery, so the photos stay on Thingiverse. See them on Thingiverse ↗
