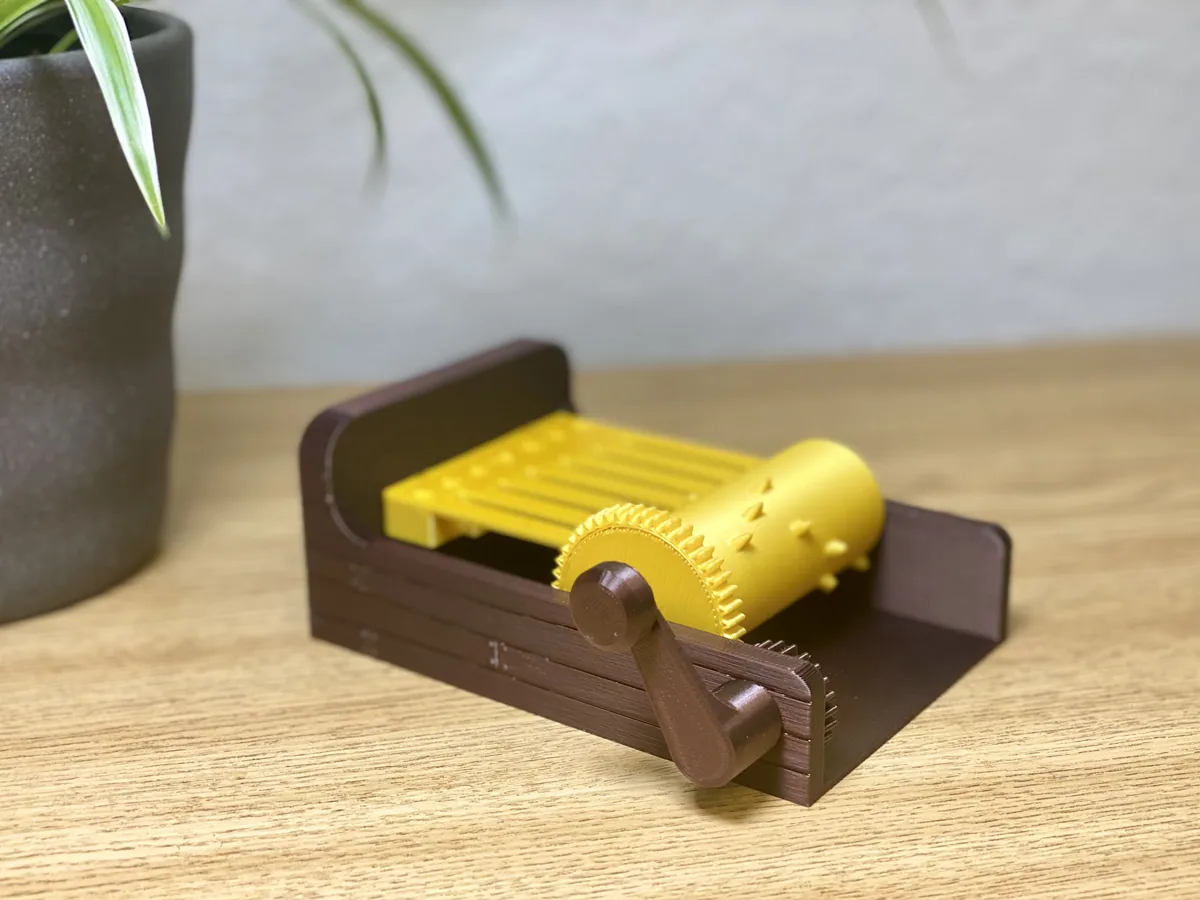

About the He's a Pirate music box
A fully printed hand-crank music box that plays the beginning of the film theme 'He's a Pirate'. The designer printed everything in PLA on a Prusa MK3S at 0.3 mm layers. Finer layers look better. In the video he says he cranked a bit fast, and that it sounds better at 0.75× speed.
The crank handle and the roller need supports. Print the handle with its movable knob facing up and no support in its hexagon opening, and the roller with its gear wheel nearest the bed. Use 4 outer perimeters for the springs to make them stronger. Insert the springs during a pause while the main body prints. Then press the roller into its openings, gently, because its holders can break, and fit the small gear and the crank.
What you'll need
Printed parts
- Main body
- Springs
- Roller with gear
- Small gear and crank handle
Bought parts
- Nothing
Tools
- A slicer that can pause mid-print
Build overview
- Print the springs. Print them with 4 perimeters.
- Print the body. Pause at the right layer to insert the springs, then resume.
- Print the roller and crank. Supports on, roller gear down, knob up.
- Assemble. Press in the roller gently, then fit the small gear and crank.
Print settings
- Material: PLA
- Layer height: 0.3 mm (finer looks better)
- Supports: Crank handle (not in the hexagon) and roller
- Springs: 4 outer perimeters
Video

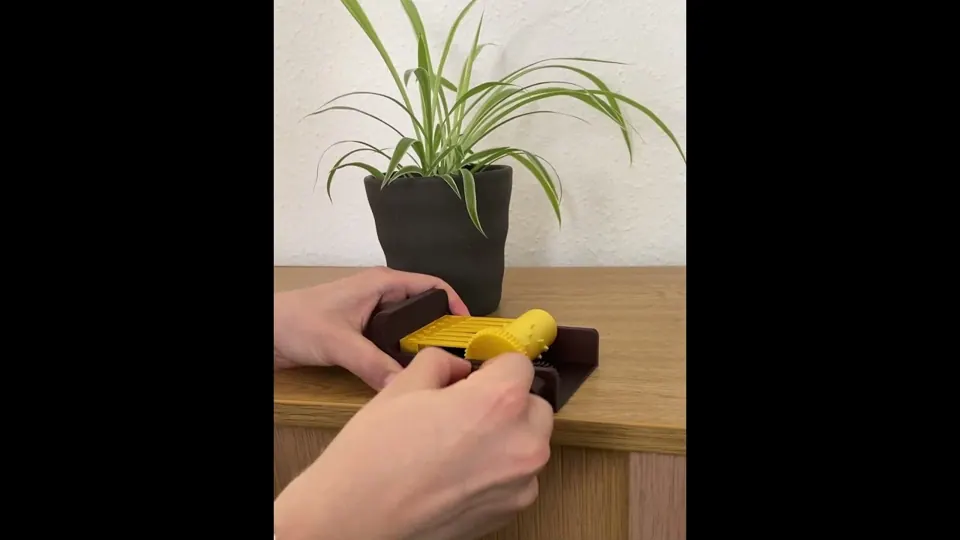

Play video: He's a Pirate music box (loads YouTube)
Nothing loads from YouTube until you press play. Video thumbnails are © their creators.
Photos

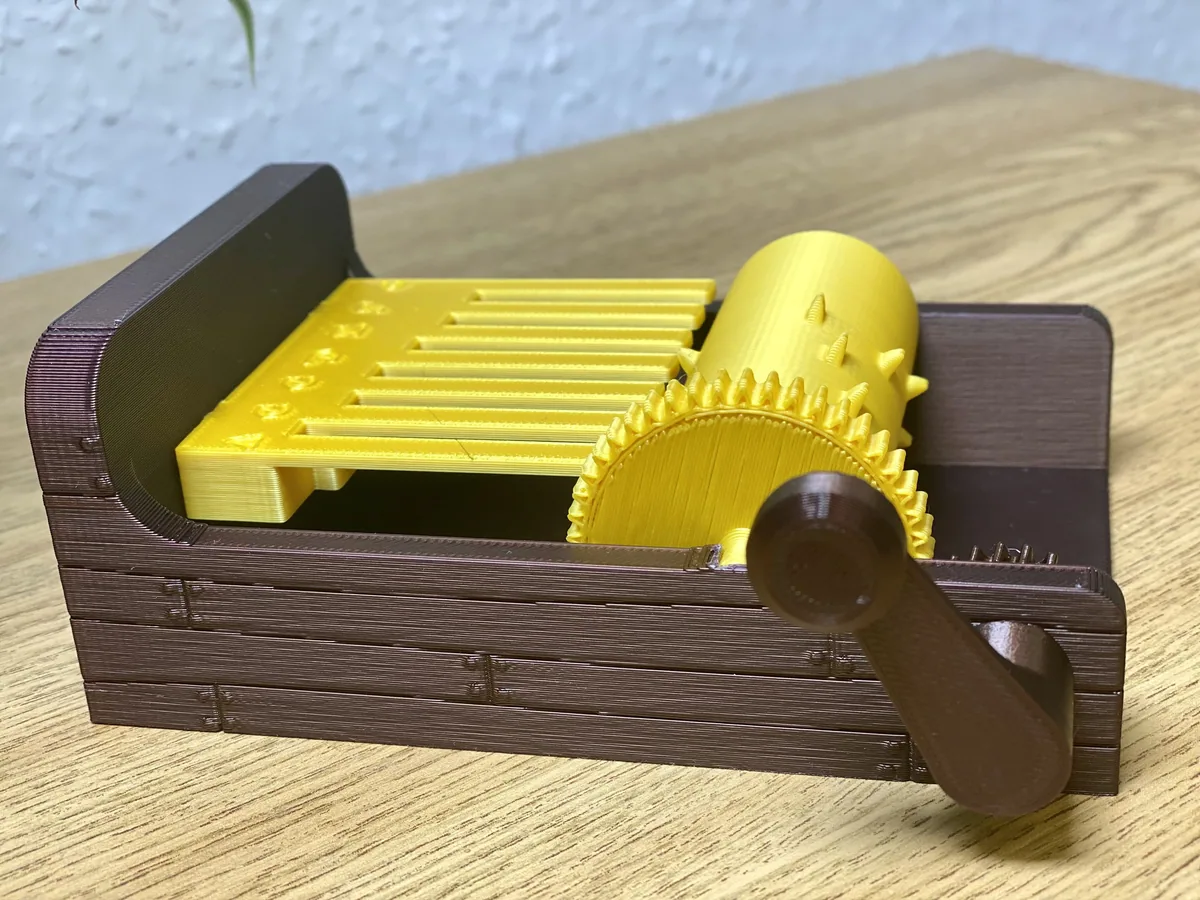

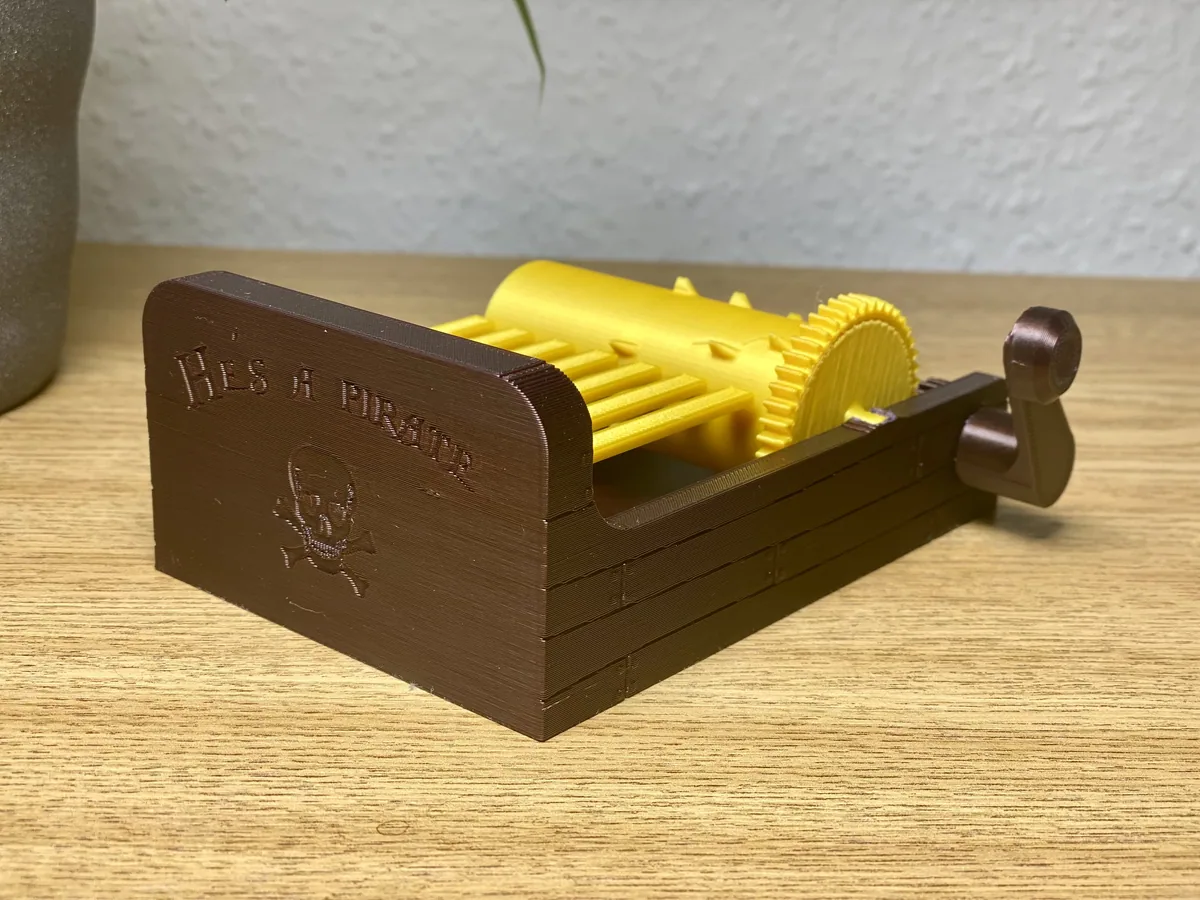

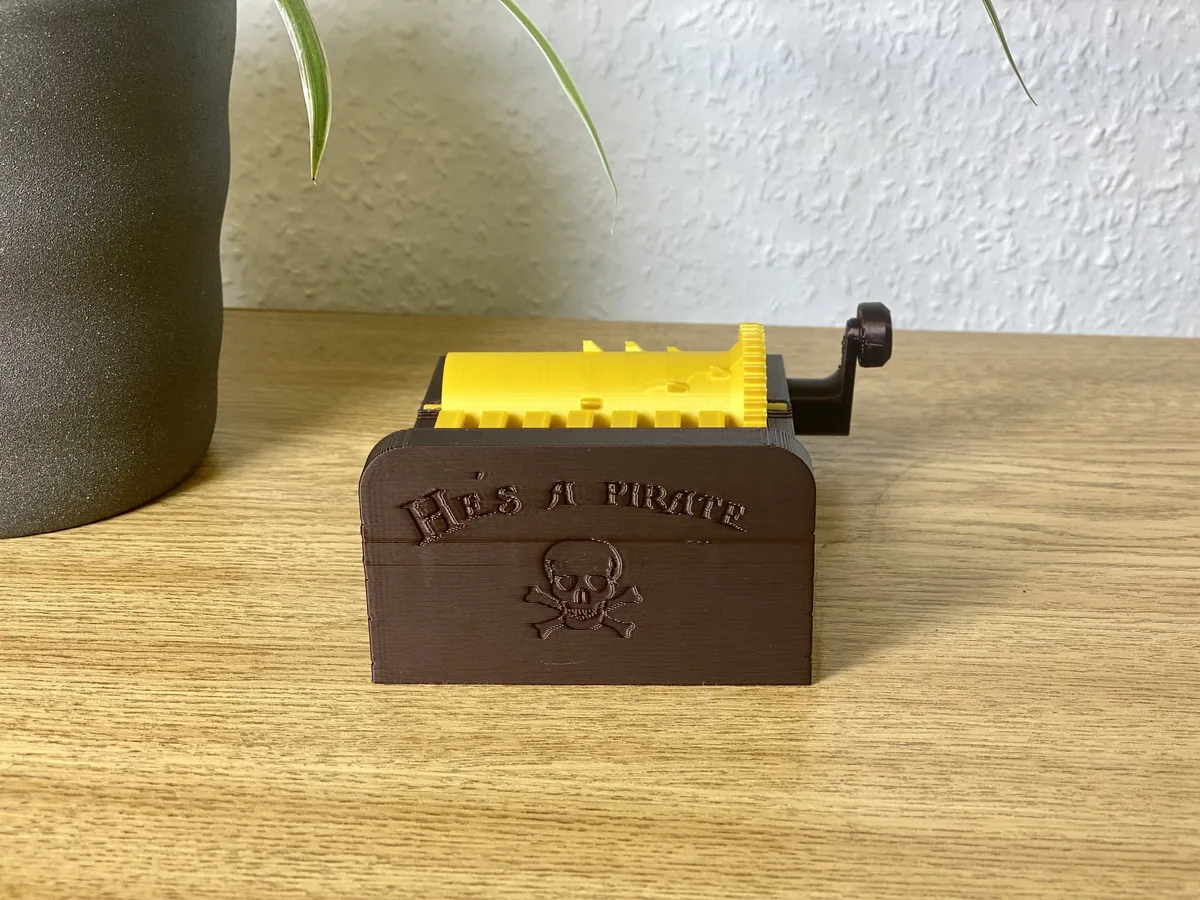

All photos: Matthias, from the design page on Printables, licensed CC BY-NC. We resized them and converted them to WebP.
