About the Drumstick holder

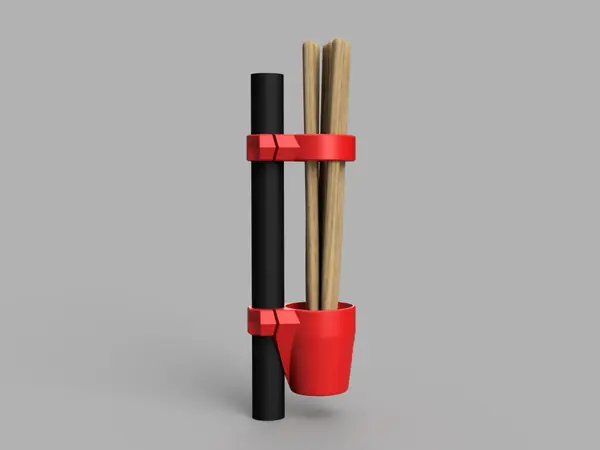

Keeps spare sticks within reach on your kit. A cup at the bottom and a ring above it each clamp onto a vertical tube, so the sticks stand upright between them. The clamping bracket is identical for both, so you print it twice. M6 hex nuts drop into hexagonal pockets inside, and M6 bolts squeeze the clamp tight.
There are two versions, which don't mix. One is sized for standard 1.5-inch drum-rack tubing and uses M6 × 40 bolts. The universal one fits tubes from about 20 to 45 mm and needs M6 × 30 bolts for thin tubes, up to M6 × 60 for thick ones. For the rack version, print one bracket first and test the fit before printing the rest. A smaller four-stick version is also on Printables.
What you'll need
Printed parts
- Cup
- Ring
- 2 identical clamping brackets
Bought parts
- 4 × M6 bolts (40 mm for rack tube; 30–60 mm for the universal version)
- 4 × M6 hex nuts
Tools
- Hex key or screwdriver for M6
Build overview
Print settings
- Orientation: Upright, as in the renders
- Supports: None
- Fit: Test one bracket on your tube and rescale if needed
