About the sheet music clip

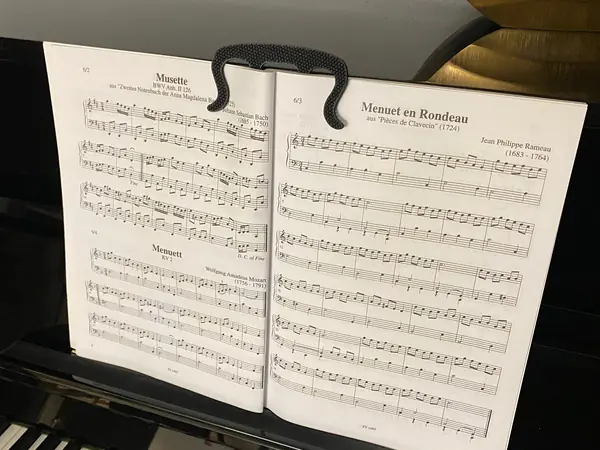

Music books never want to stay open on a stand. This clip spans the spine and holds both pages flat. The designer copied the idea from a commercial clip and printed it using a slicer trick from a Prusa blog post about modifier meshes.

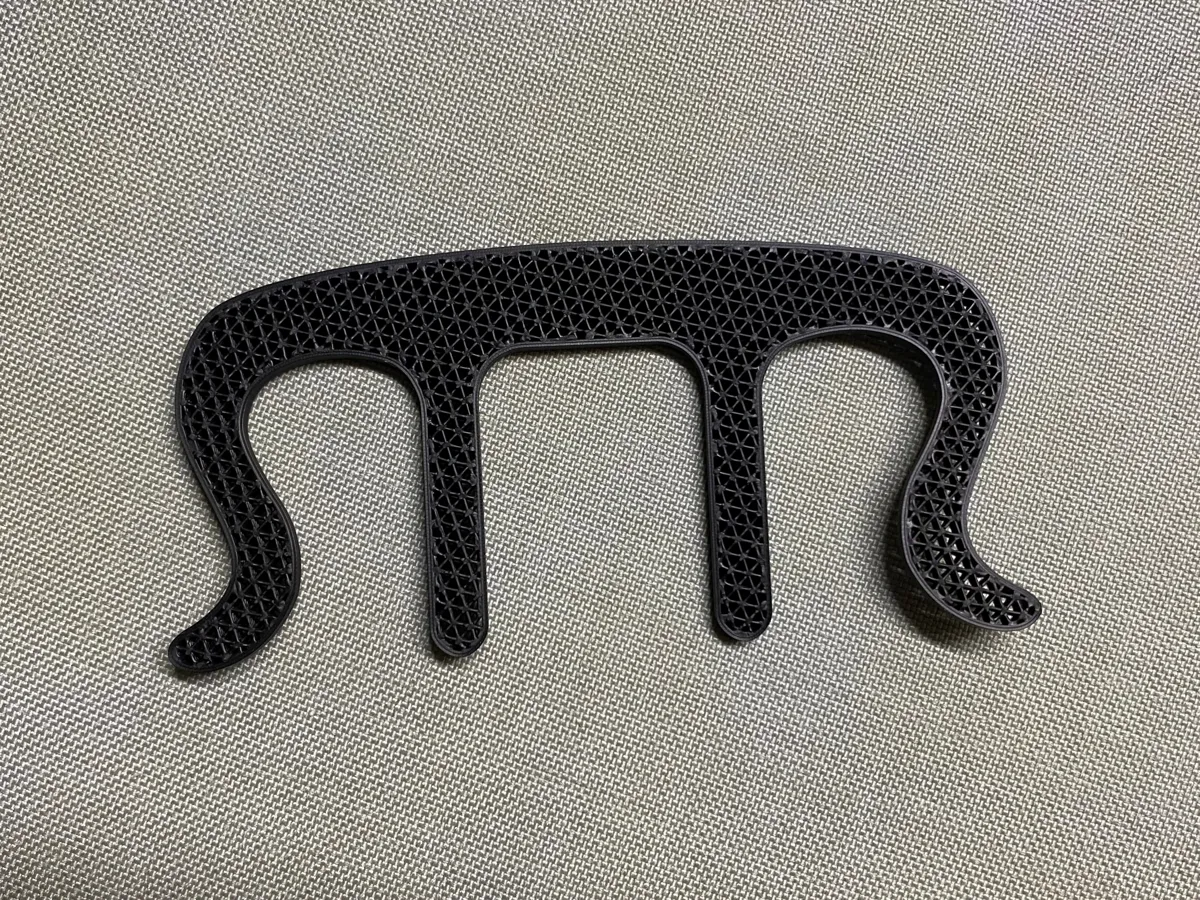

The trick is to print it with no top or bottom layers and 60% triangle infill, so the infill pattern itself becomes the springy surface. The designer admits it's a little wobbly, but it holds very well. Both a normal version and a ready-made 3MF with the special settings are included.
What you'll need
Printed parts
- The clip
Bought parts
- Nothing
Tools
- Nothing
Build overview
Print settings
- Top and bottom layers: 0
- Infill: 60% triangles
- Shortcut: Use the included 3MF with these settings
Photos
All photos: tokyo2ooo, from the design page on Printables, licensed CC BY-NC. We resized them and converted them to WebP.
