About the Nerdy Gurdy crank

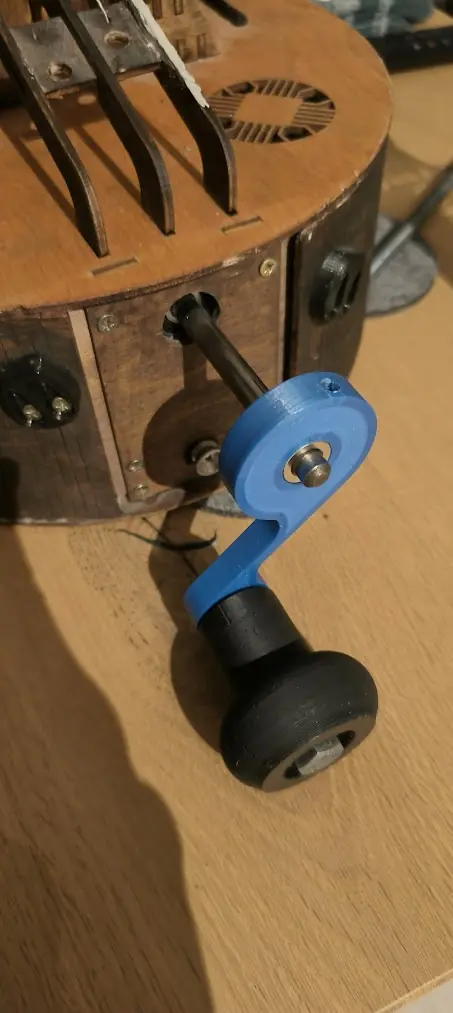

The Nerdy Gurdy (also in the library) is an open-source hurdy-gurdy whose crank is normally laser-cut. This printed version replaces it and is adapted for a smooth shaft.
It holds a standard shaft collar with an 8 mm bore, 14 mm outside diameter and an M4 set screw, which grips the shaft.
What you'll need
Printed parts
- The crank
Bought parts
- A shaft collar: 8 mm bore, 14 mm OD, M4 set screw
Tools
- A hex key for the set screw
Build overview
Print settings
- Material: PLA
- Layer height: 0.2 mm
- Nozzle: 0.4 mm
