About the Full Size Drum Kit

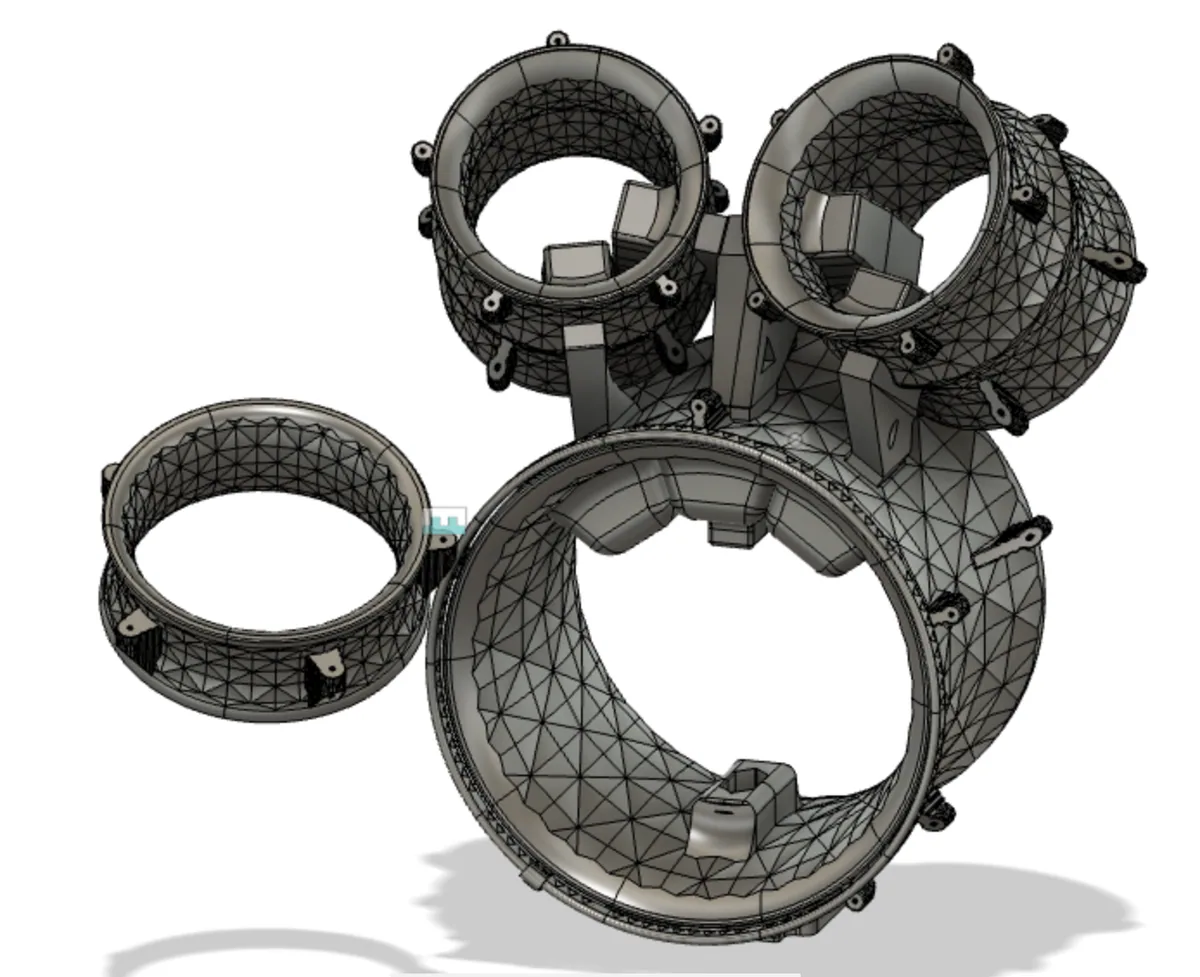

Drum shells are big, but this kit is designed so you don't need a big printer. Each drum is split into a few large segments that fit on a Prusa MK3 and assemble into full-size drums. Apart from the drum heads (skins) and a set of M6 × 70 socket screws, everything is printed. It was designed in Fusion 360 for the Prusa music contest. It was the designer's first published model, printed in Prusa orange and black.
A floor tom was added later as its own Printables page, and a name-plate mod lets you put a band name on the bass drum. Both are linked below. The snare's tension ring now has custom supports. In PrusaSlicer, use 'split to parts', not 'split to objects', or the supports won't work.
Who it's for. Drummers with a lot of filament and print time. Expect many large prints. An instruction PDF covers assembly.
Photos. The licence is No-Derivatives, so we show the designer's photos only resized, without cropping.
What you'll need
Printed parts
- Drum shell segments, hoops and tension rings for each drum
- Optional: floor tom and name plate (separate pages)
Bought parts
- Drum heads (skins) in the matching sizes
- M6 × 70 socket screws
Tools
- Hex key for M6
- A printer with at least a Prusa MK3-size bed
Build overview
Print settings
- Snare tension ring: Use 'split to parts' in PrusaSlicer so the custom supports work
- ? Other settings: See the drum kit instructions PDF

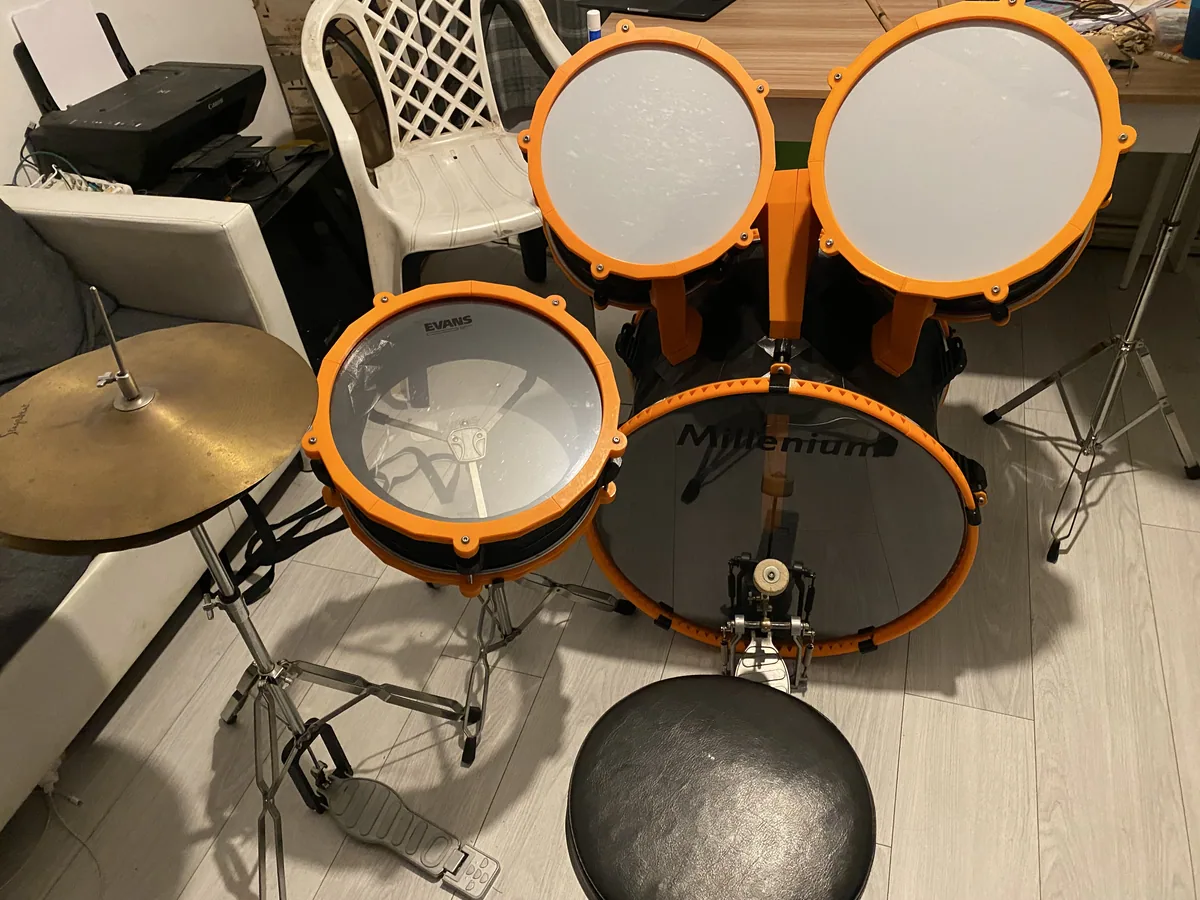

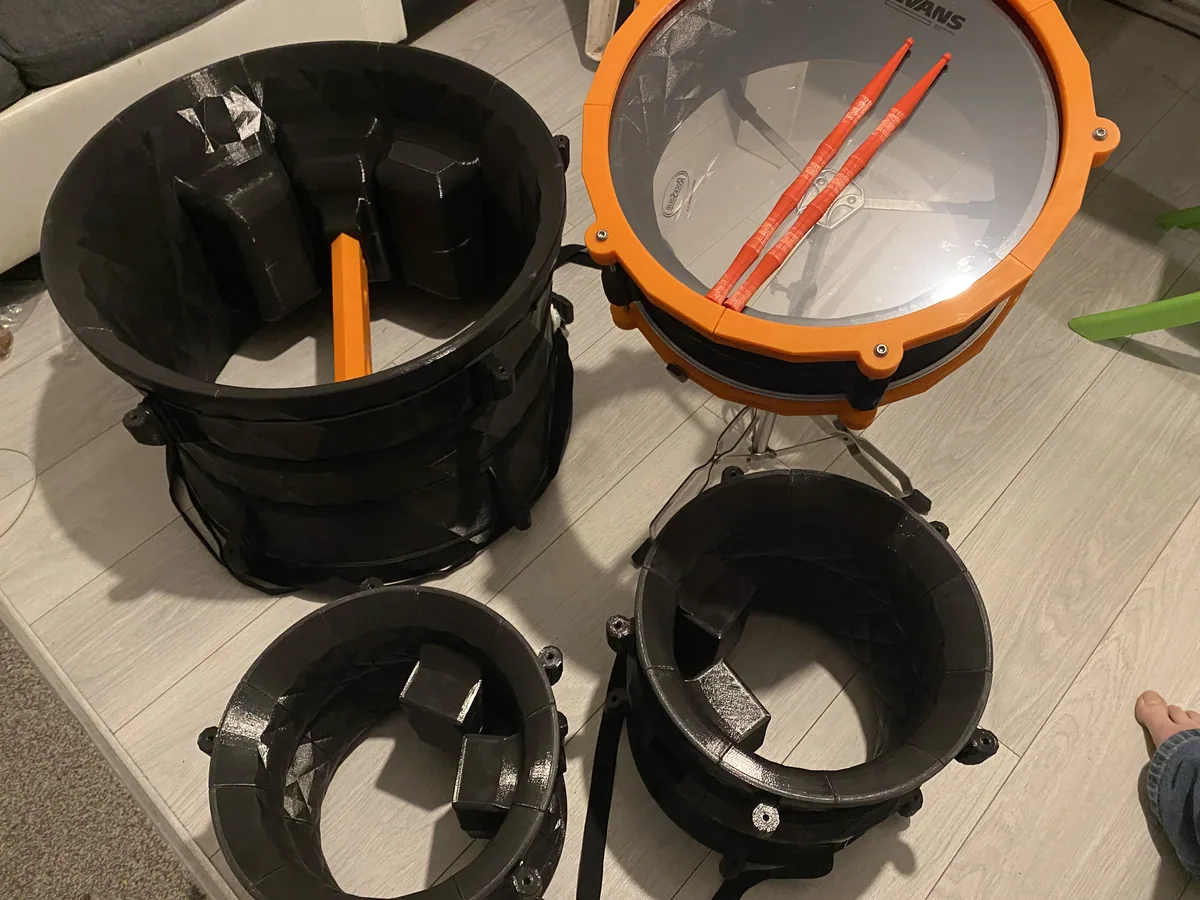

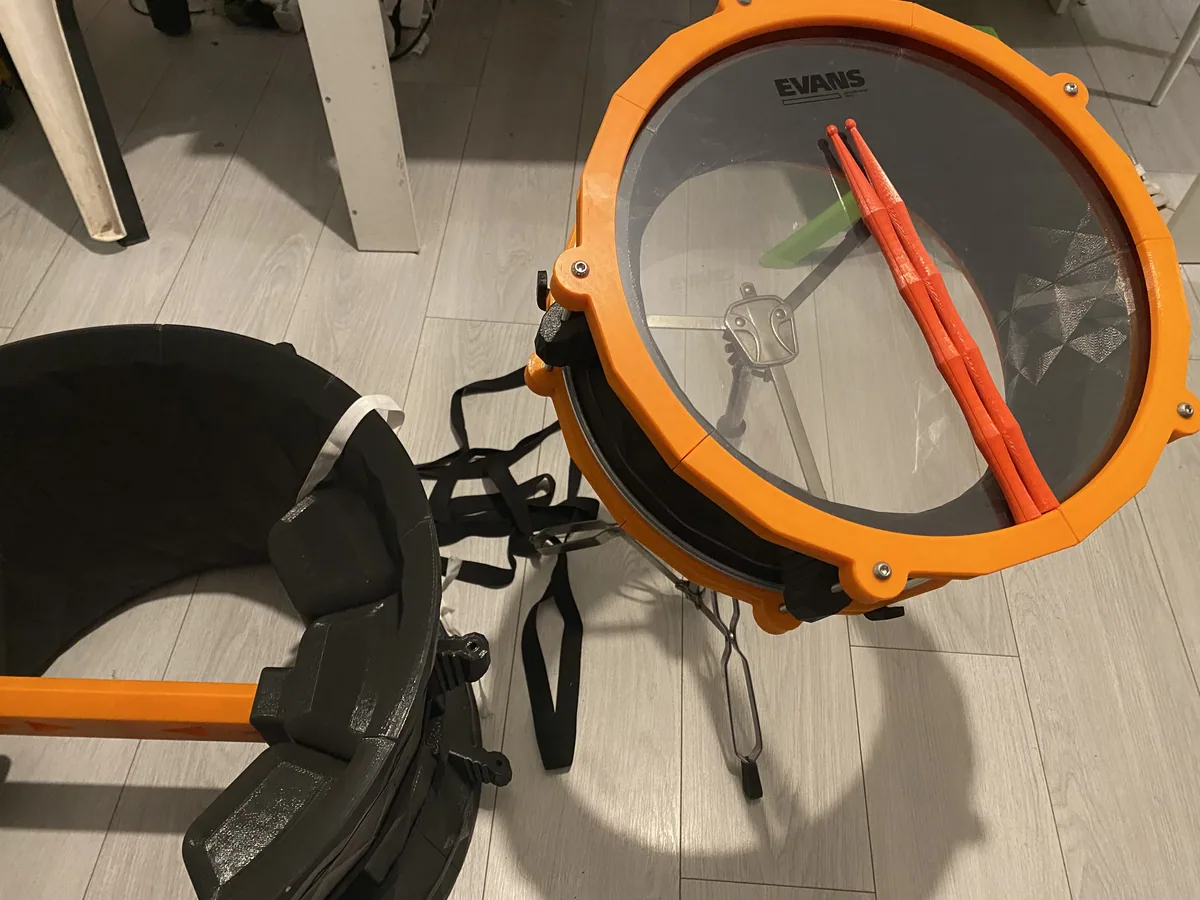

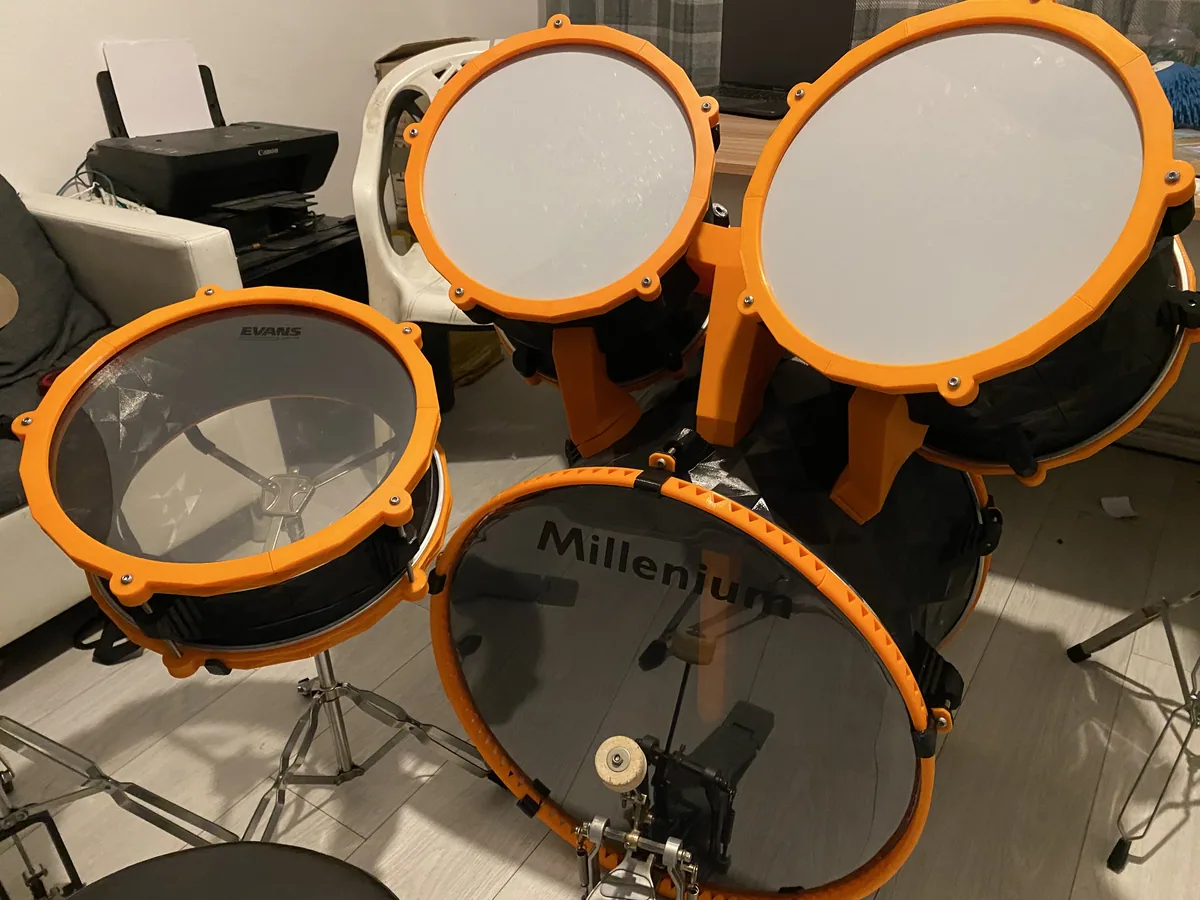

Photos
All photos: SYNCPRINTING, from the design page on Printables, licensed CC BY-NC-ND. Shown unmodified apart from resizing and conversion to WebP (no crops), as the no-derivatives licence requires.
5 more photos on Printables ↗
