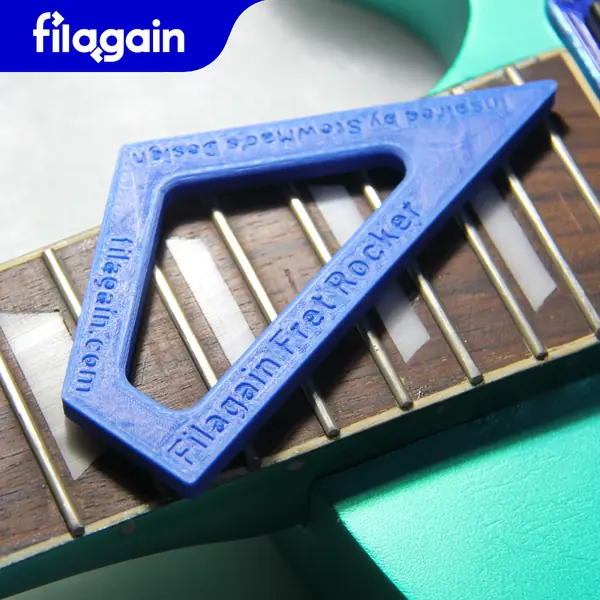

About the Fret rocker
If one fret sits higher than its neighbours, the string buzzes against it. A fret rocker is a small straight-edged tool you lay across three frets at a time. If it rocks, the middle fret is high. This printed version reworks a commercial steel design for printing. A large cut-out in the middle saves material and doubles as a finger grip, and chamfered edges allow for elephant's foot on the first layers.
Each edge is a different length, marked in mm and inches, to span different groups of frets. For crisp text, use a small nozzle. The designers printed theirs with a 0.2 mm nozzle at 0.15 mm layers. A 0.4 mm nozzle at 0.3 mm works just as well, but the markings are less legible. Because it's plastic, check that your print is truly straight before trusting it.
What you'll need
Printed parts
- The fret rocker
Bought parts
- Nothing
Tools
- Nothing
Build overview
Print settings
- Nozzle: 0.2 mm for legible text (0.4 mm works)
- Layer height: 0.15 mm (0.3 mm works)
