About the Alto sax stand

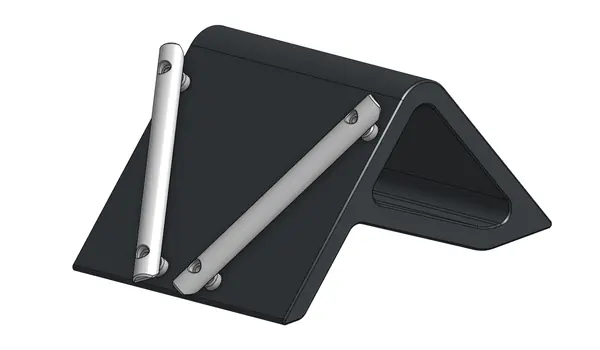

A simple, strong holder for an alto saxophone, either on a desk or screwed to the wall. It's built from a wall mount, four spacers and two mounting rods, joined with M4 bolts into heat-set threaded inserts. The designer printed it in ABS. PLA would be fine only if the stand stays cool and out of direct sun, because it carries the sax's weight continuously.
Print the wall mount on its side for strength, and the rods and spacers on their flat faces. With 5 walls and 30% infill it takes about 450 g, and the designer advises against anything weaker. Still far cheaper than a bought stand.
What you'll need
Printed parts
- 1 wall mount
- 4 spacers
- 2 mounting rods
Bought parts
- 4 × M4 × 26 mm bolts
- 4 × M4 heat-set threaded inserts (8 mm)
- 2 × 6 mm wall plugs (for wall mounting)
Tools
- Soldering iron to set the inserts
- Drill (for wall mounting)
Build overview
Print settings
- Material: ABS (PLA only if kept cool)
- Layer height: 0.2 mm
- Walls / top / bottom: 5
- Infill: 30%
- Supports: None
- Orientation: Wall mount on its side; rods and spacers flat
