About the Clarinet stand

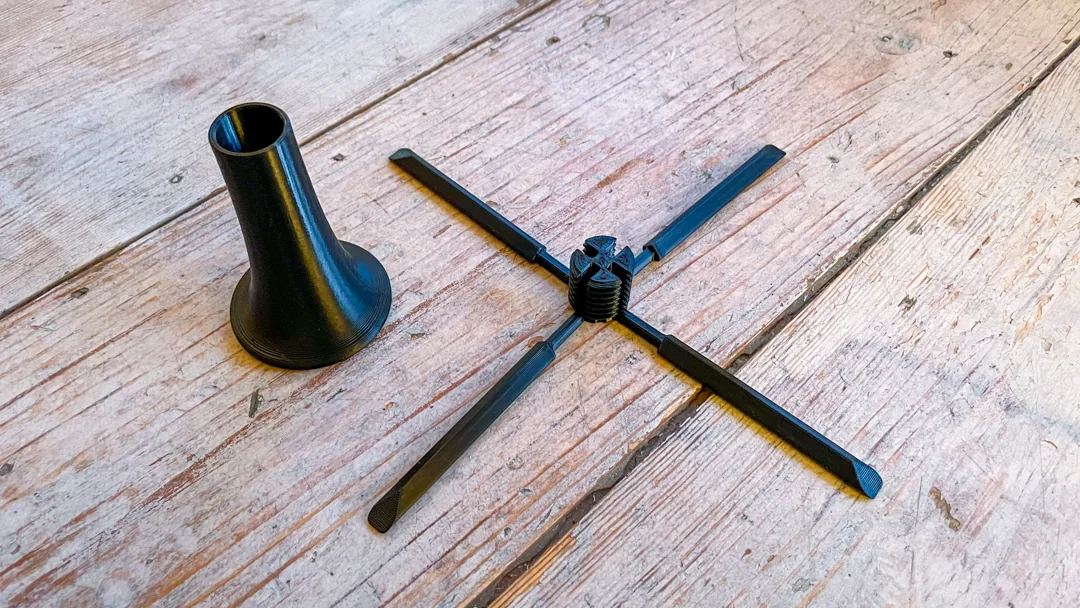

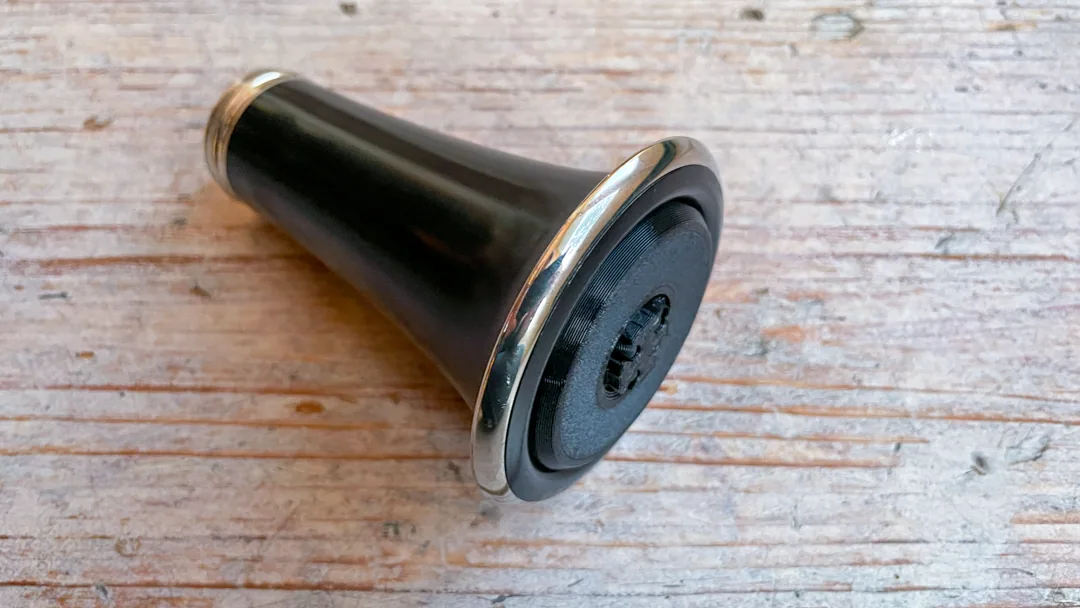

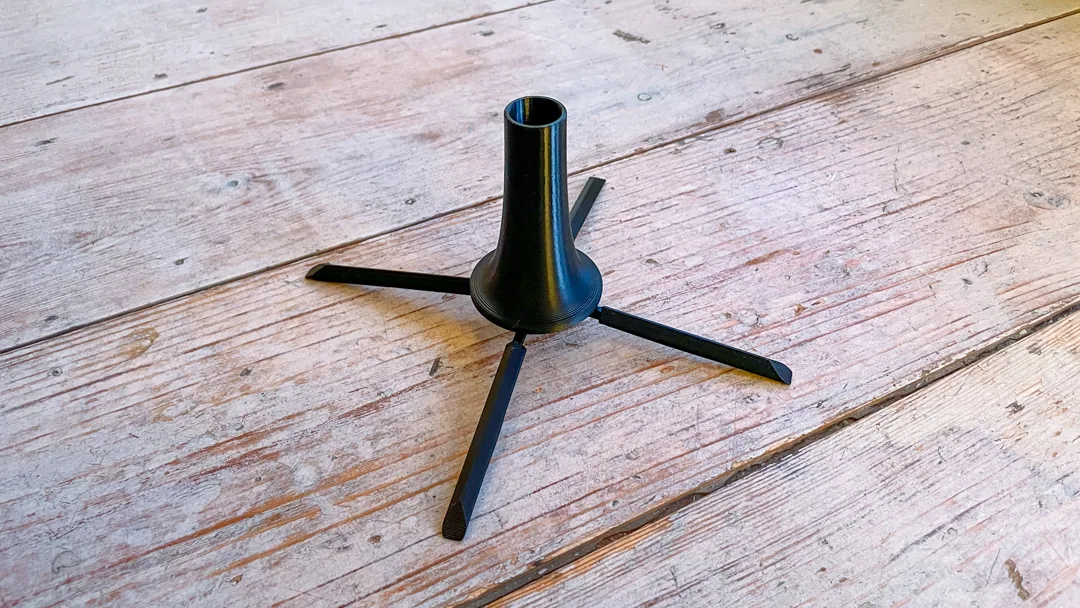

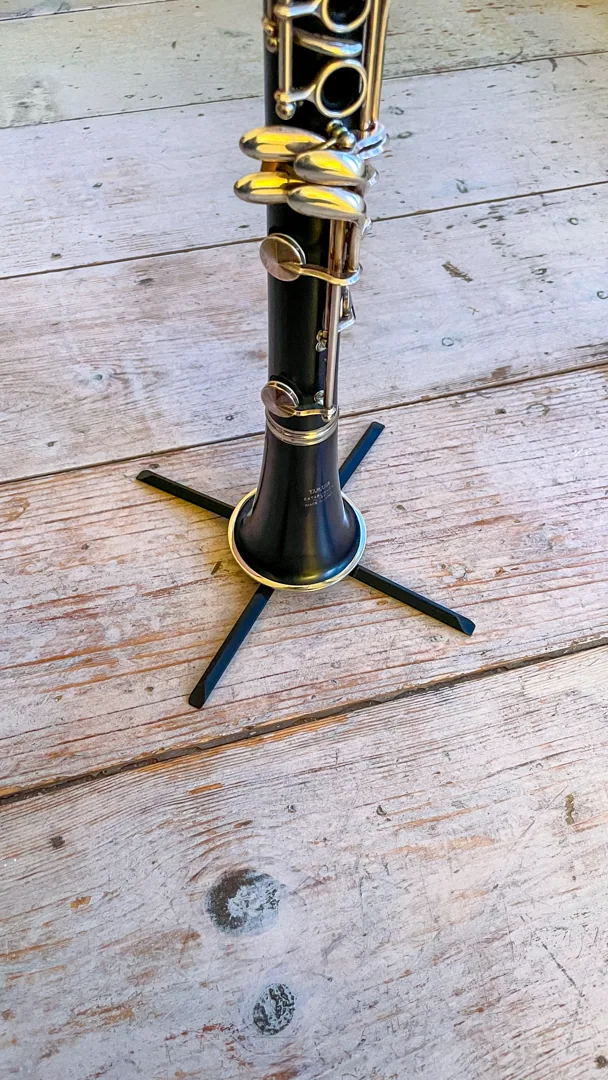

A peg stand holds a clarinet upright on its bell when you put it down, which is far safer than laying it on a chair. This one is two screw-together parts. The outer part has folding legs printed in place, and the inner part screws into it. To pack it away, unscrew it, fold the legs in and screw it back together, and it fits inside the bell in your case.

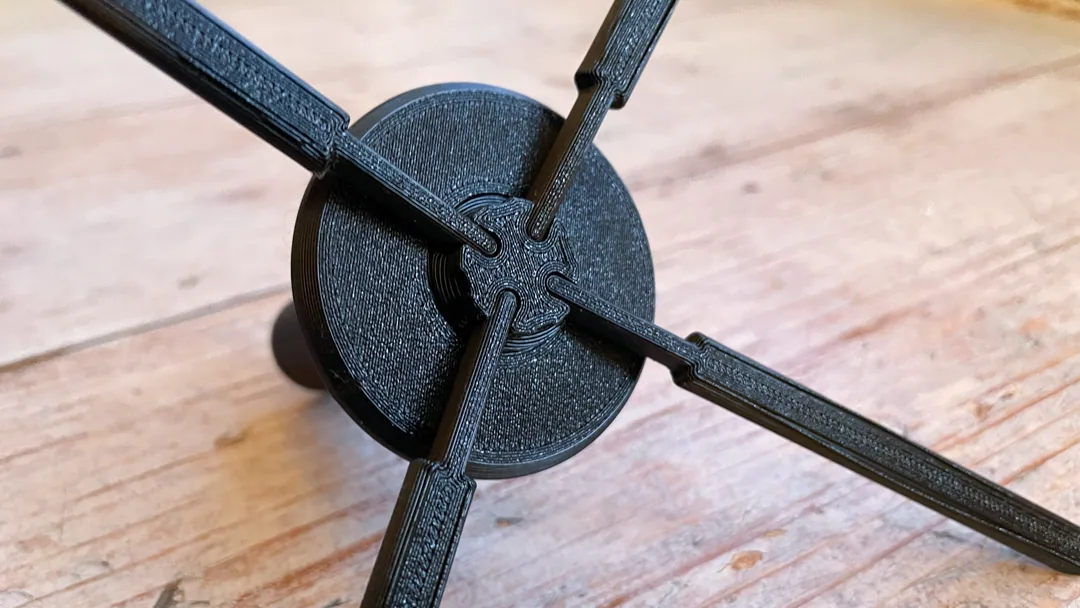

It comes in three versions with different thread tolerances, so you can pick the one that suits your printer and layer height. If the thread is tight, work it in slowly, back and forth, for a snug fit. The legs need a little persuasion to fold the first time, and they're designed to stop about 20 degrees below level. Don't force them further. The design was inspired by an earlier printable clarinet stand.
Who it's for. Clarinettists who want a stand that lives in the case. The designer uses it but sensibly says to use it at your own risk.
What you'll need
Printed parts
- Outer part with folding legs (print in place)
- Inner screw part
Bought parts
- Nothing
Tools
- Nothing
Build overview
Print settings
- Material: PLA (PETG also fine)
- Layer height: 0.3 mm for the 0.5 mm-tolerance version
- Supports: None, or the print-in-place legs won't work
- Walls: 3–4 perimeters
- Infill: 20%
- Adhesion: Optional outside-only brim for the long legs
Photos
All photos: kvriet, from the design page on Printables, licensed CC BY-NC-SA. We resized them and converted them to WebP. These adapted versions are shared under the same licence.
